How do I replace the corners of the VAUDE Trolley Takutea?

Take a turn too quickly and the Takutea Trolley will bump into one of its corners. This works well for years. But if a corner does break, it's easy to replace. We show you exactly how with these instructions.

Tools required:


PH2 screwdriver, 4 millimeter Allen key, size 7 open-end wrench (alternatively ratchet with socket)

Difficulty: Easy

Duration: 15 minutes per corner

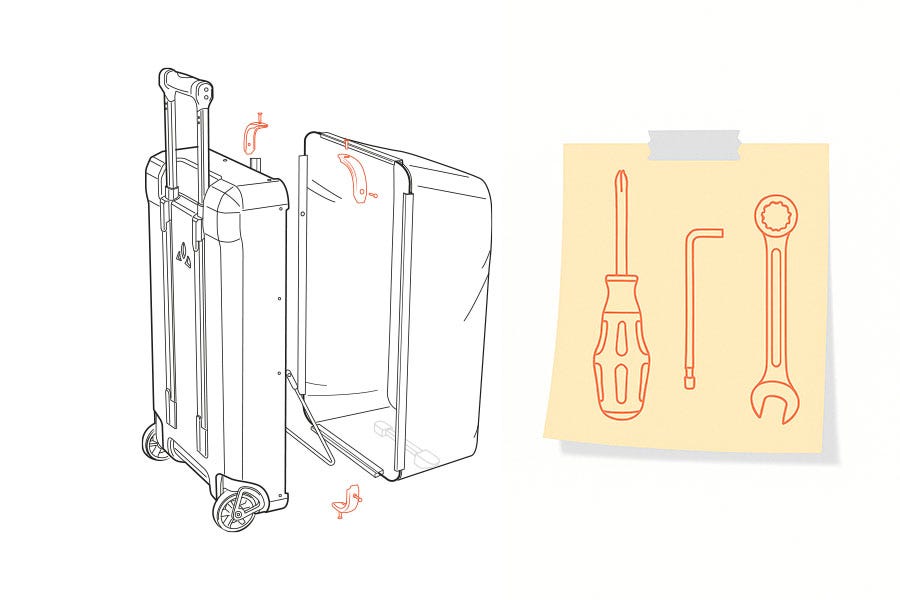

Eine Skizze zeigt, was man braucht um die Ecken des Takutea Trolleys auszutauschenEine Skizze zeigt, was man braucht um die Ecken des Takutea Trolleys auszutauschen

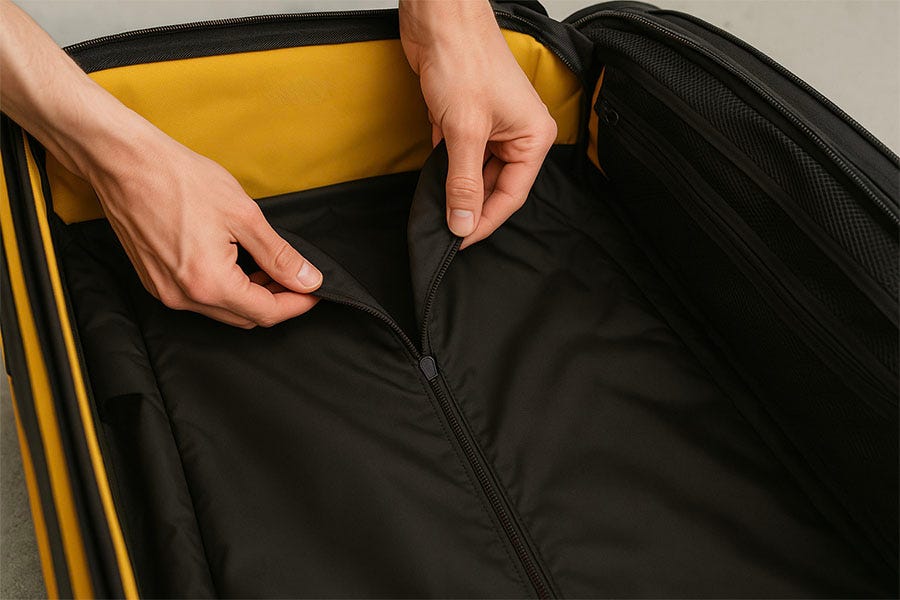

Der Reißverschluss des Innenfutters des Trolleys wird geöffnetDer Reißverschluss des Innenfutters des Trolleys wird geöffnet

Open the zipper of the inner lining to access the screws on the inside of the corners.

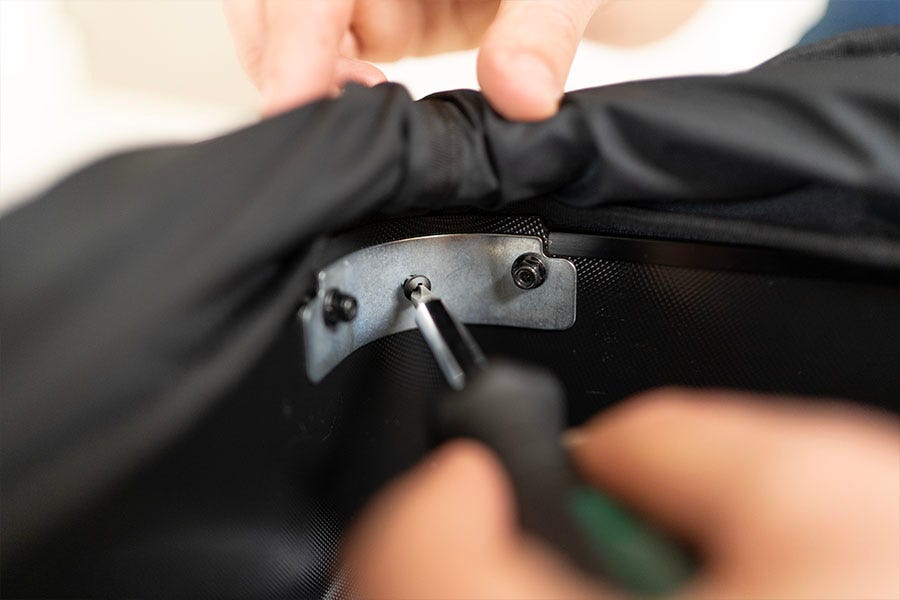

Die metallene Verstärkung der EckeDie metallene Verstärkung der Ecke

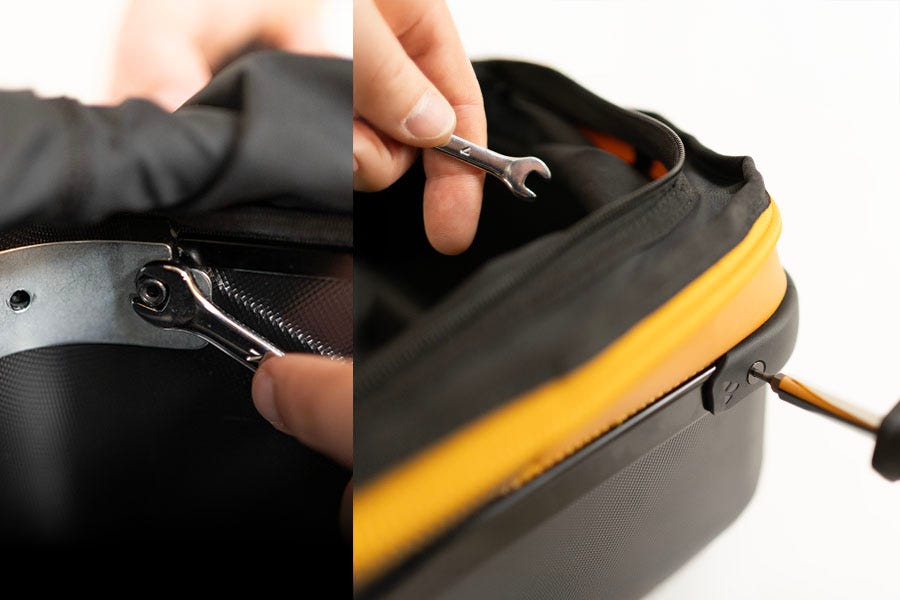

Die Schrauben der EckenDie Schrauben der Ecken

There is a metal reinforcement inside. Unscrew the middle screw with the screwdriver.

Fix the nuts on the inside of the two outer screws with the open-end wrench and loosen the screws on the outside with the Allen key.

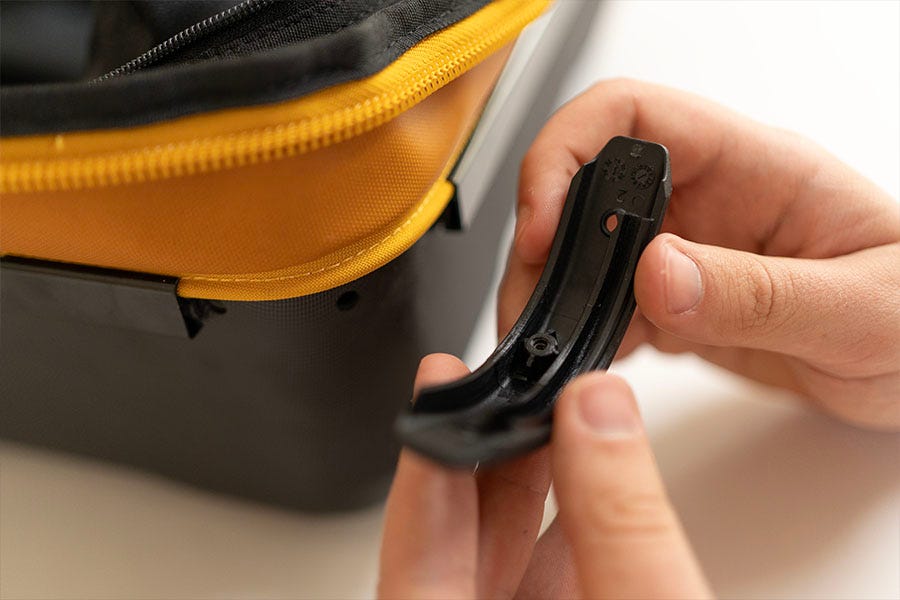

Zwei Hände halten eine EckeZwei Hände halten eine Ecke

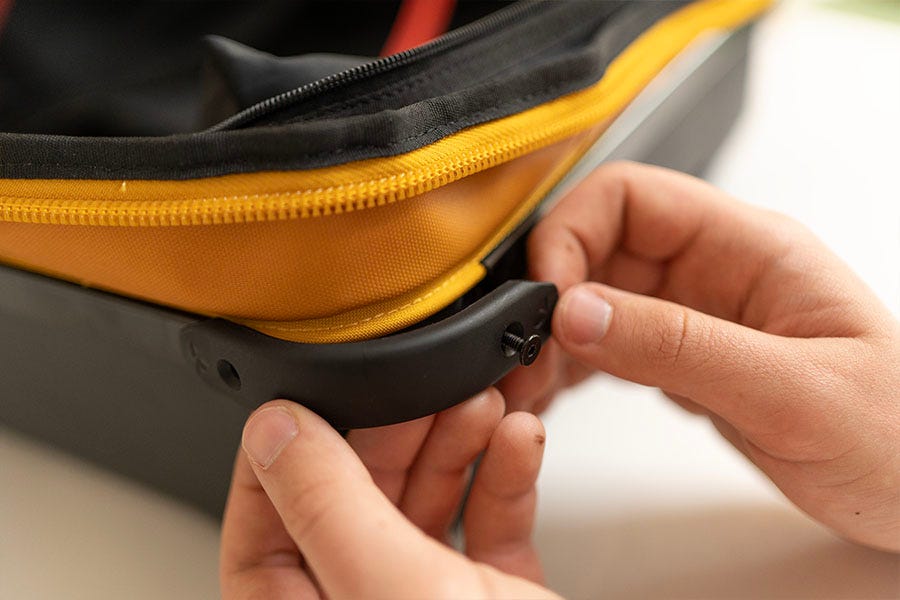

Die Ecke wird an die Ecke des Trolleys angelegtDie Ecke wird an die Ecke des Trolleys angelegt

Replace the old corner with the new one.

Make sure that the holes for the screws are at the bottom and that the holder for the fabric lip is at the top, as shown in the photo.

Screw the replacement part with the internal reinforcement tight again as in step 2 (0.75 Nm).

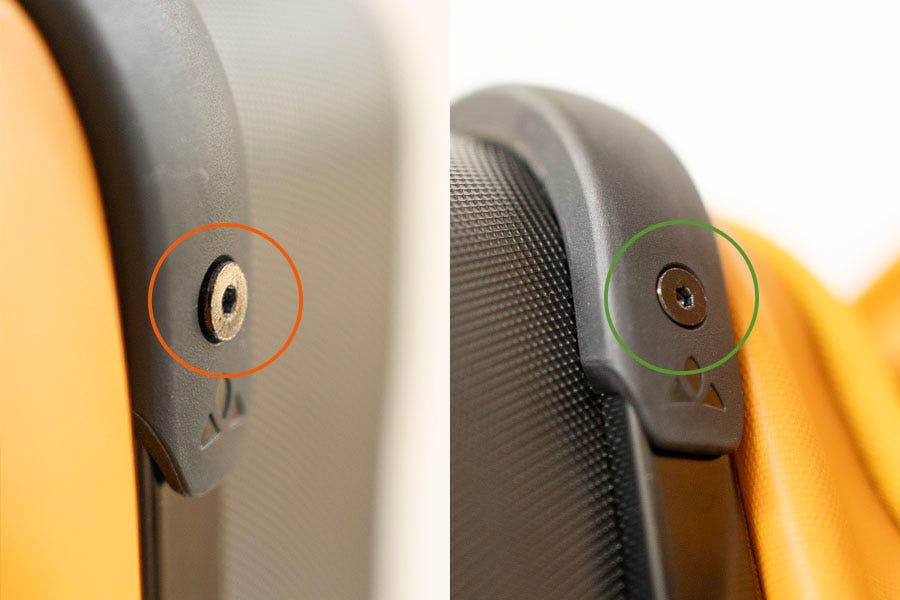

Der Kopf der Schraube muss vollkommen versenkt sein, zeigt das FotoDer Kopf der Schraube muss vollkommen versenkt sein, zeigt das Foto

Make sure that the screws are fully screwed in and that the head does not protrude on the outside.

Collection of all repair instructions for Takutea trolleys

Is something else broken on your Takutea trolley? On this page, you will find all repair instructions for Taktutea trolleys.
